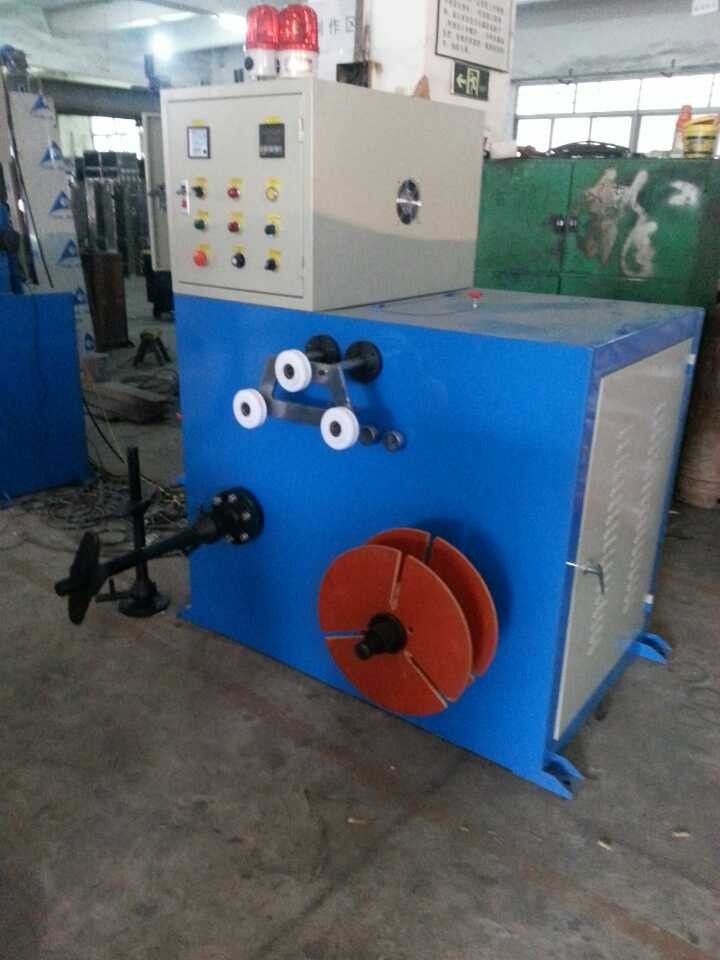

High speed insulated cable extrusion machine

Suitable for the extrusion of PVC,PE,PU and other plastic material,mainly applied in the insulation or sheath extrusion of car cable,net wire,power cable,data wire,high frequency wire,building wire,electric wire.etc.The changed screw is suitable for extrusion of low smoke halogen free,nylon and other plastic material.

High speed insulated cable extrusion machine


1. Application:

Suitable for the extrusion of PVC,PE,PU and other plastic material,mainly applied in the insulation or sheath extrusion of car cable,net wire,power cable,data wire,high frequency wire,building wire,electric wire.etc.The changed screw is suitable for extrusion of low smoke halogen free,nylon and other plastic material.



2. Technical parameters:



Technical parameters

Machine type

GF-25

GF-30

GF-35

GF-45

GF-50

GF-60

Pay off type

motorized

motorized/double-shaft

Screw diameter

Φ25

Φ30

Φ35

Φ45

Φ50

Φ60

Screw L/D

26:1

Max.extrusion output

20kg/h

30kg/h

40kg/h

50kg/h

70kg/h

110kg/h

Motor power

7.5HP

10HP

10HP

15HP

15HP

20HP

Wire diameter

Φ0.2-1.0

Φ0.2-2.0

Φ0.4-2.5

Φ0.6-3.0

Φ0.6-4.0

Φ0.8-8.0

Cooling device

Folding type W/U type

Haul-off power

2HP

2HP

2HP

3HP

3HP

4HP

Wire-storage length

250m

Max. Line speed

500m/min

Take-up type

Double shaft bundle packaging/shaft packaging





 Can be optional for PLC control,infuse color machine (for the production of double-color wire), etc. the concrete configuration can be adjustable according to client's requirement.
