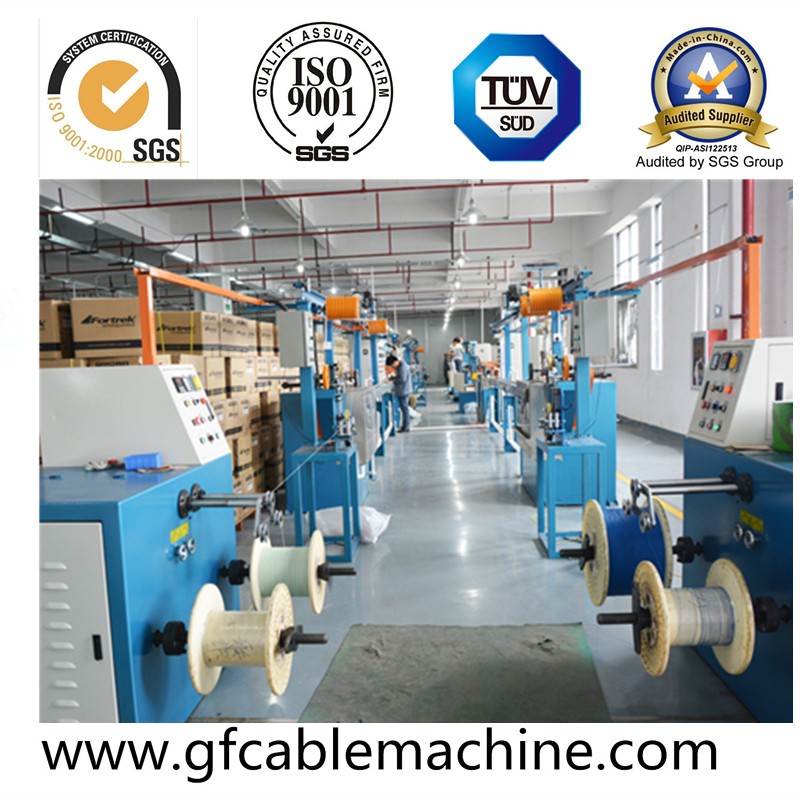

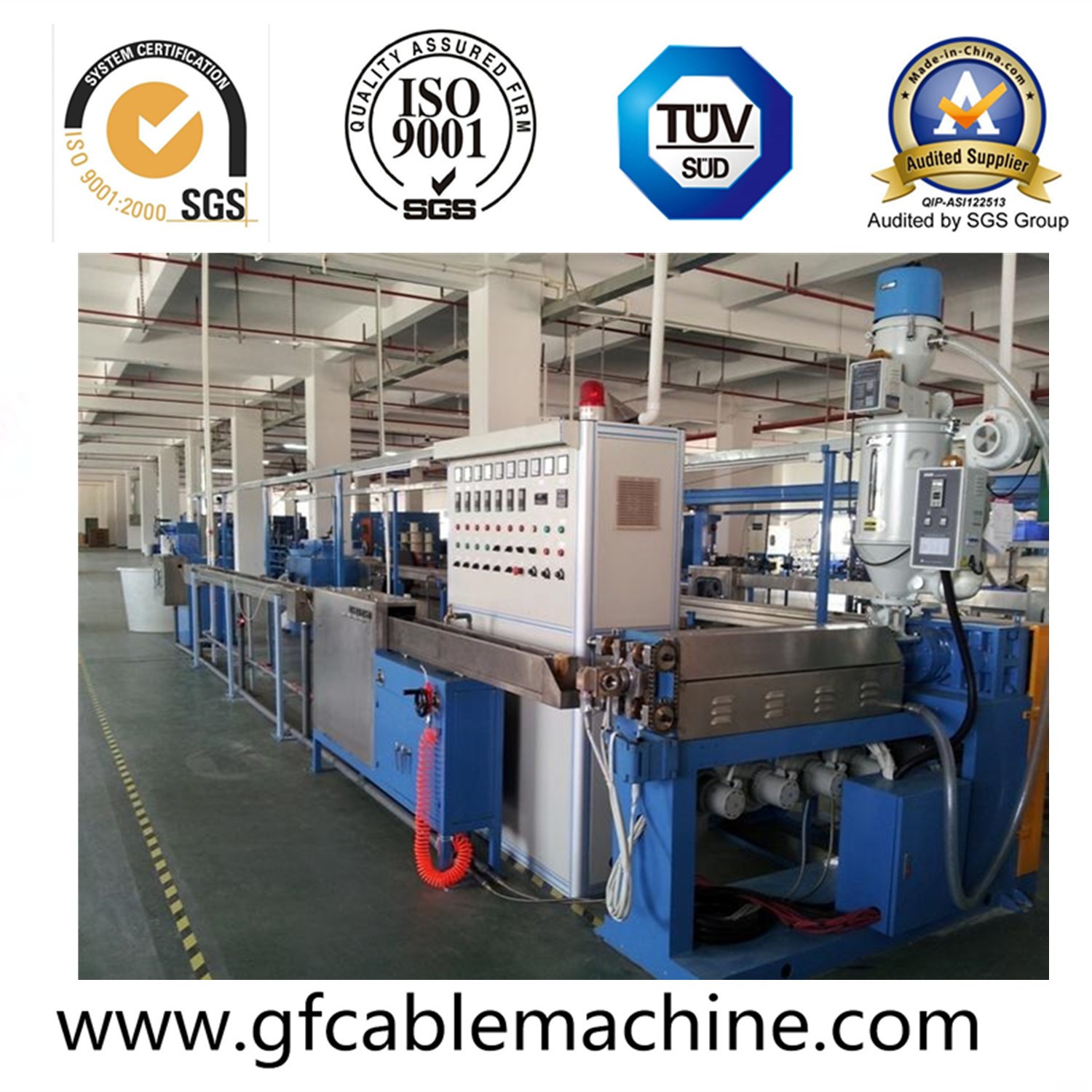

PVC/PE building wire sheathing line

Suitable for the extrusion of PVC,PE,PU and other plastic material,mainly applied in the insulation or sheath extrusion of car cable,net wire,power cable,data wire,high frequency wire,building wire,electric wire.etc.The changed screw is suitable for extrusion of low smoke halogen free,nylon and other plastic material.

1,Cable making Equipment application:
Suitable for the extrusion of PVC,PE,PU and other plastic material,mainly applied in the insulation or sheath extrusion of car cable,net wire,power cable,data wire,high frequency wire,building wire,electric wire.etc.The changed screw is suitable for extrusion of low smoke halogen free,nylon and other plastic material.
2,Cable making equipment Technical parameters:

machine type

GF-65

GF-70

GF-80

GF-90A

GF-90B

GF-120

GF-150

GF-200

pay-off shaft

double-shaft type

800-1600

1000-2000

1600-2500

1600-3150

screw diameter

ø65

ø70

ø80

ø90

ø120

ø150

ø200

screw L/D

25:01:00

MAX. extrusion output

130kg/h

150kg/h

200kg/h

250kg/h

280kg/h

400kg/h

650kg/h

900kg/h

motor power

25HP

30HP

40HP

50HP

60HP

70HP

100HP

150HP

wire diameter

ø1.2-10mm

ø1.5-12mm

ø2.0-20mm

ø3.0-25mm

ø10-40mm

ø15-60mm

ø30-120mm

above ø40mm

cooling device

single layer/double layers U type

single layer U type

haul-off power

5HP

7.5HP

10HP

15HP

20HP

10HP

MAX. line speed

500m/min

450m/min

400m/min

200m/min

100m/min

60m/min

take-up type/power

double-shaft bundle packaging

ø1000mm-2000mm

ø1600mm-2500mm

ø1600mm-3150mm

ø2000mm-3500mm

3. Equipment configuration

No.	All parts' name	Qty
1	Pay off rack	1set
2	Copper wire pre-heater	1set
3	Straightener platform	1set
4	Main motor(free-adjustable)	1set
5	Automatic dryer and hopper	1set
6	Electric apparatus main control cabinet	1set
7	Movable water trough	1set
8	Laser diameter gauge	1set
9	High speed printing machine	1set
10	Fixed water-trough	1set
11	Double-wheel capstan	1set
12	Horizontal wire-accumulator	1set
13	High frequency sparker	1set
14	Double-shaft take-up machine	1set

Can be optional for PLC control,infuse color machine (for the production of double-color wire), etc. the concrete configuration can be adjustable according to client's requirement.
