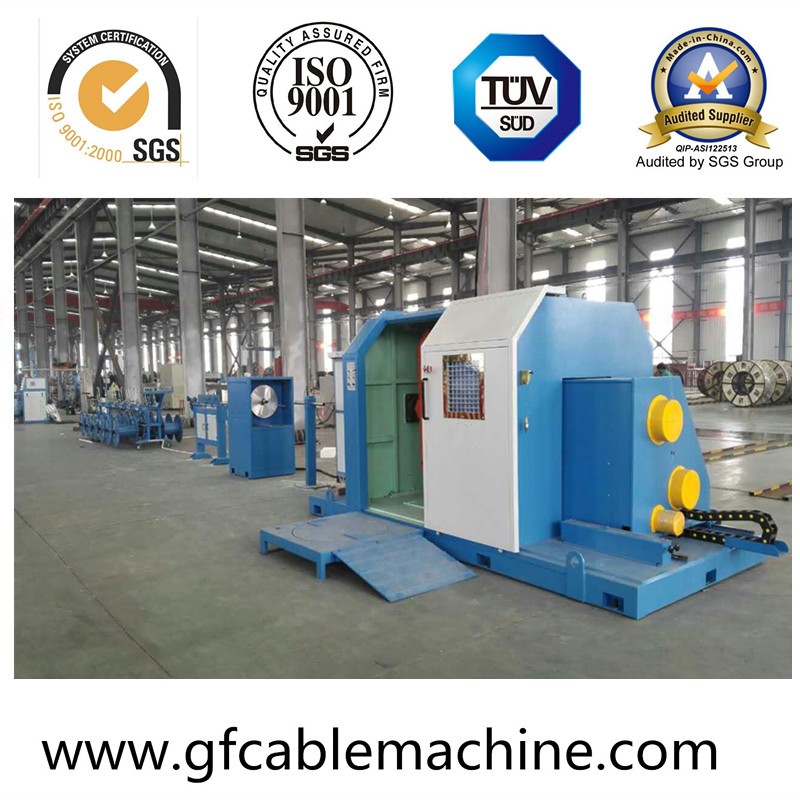

PLC Control Single Twist Cable Machine

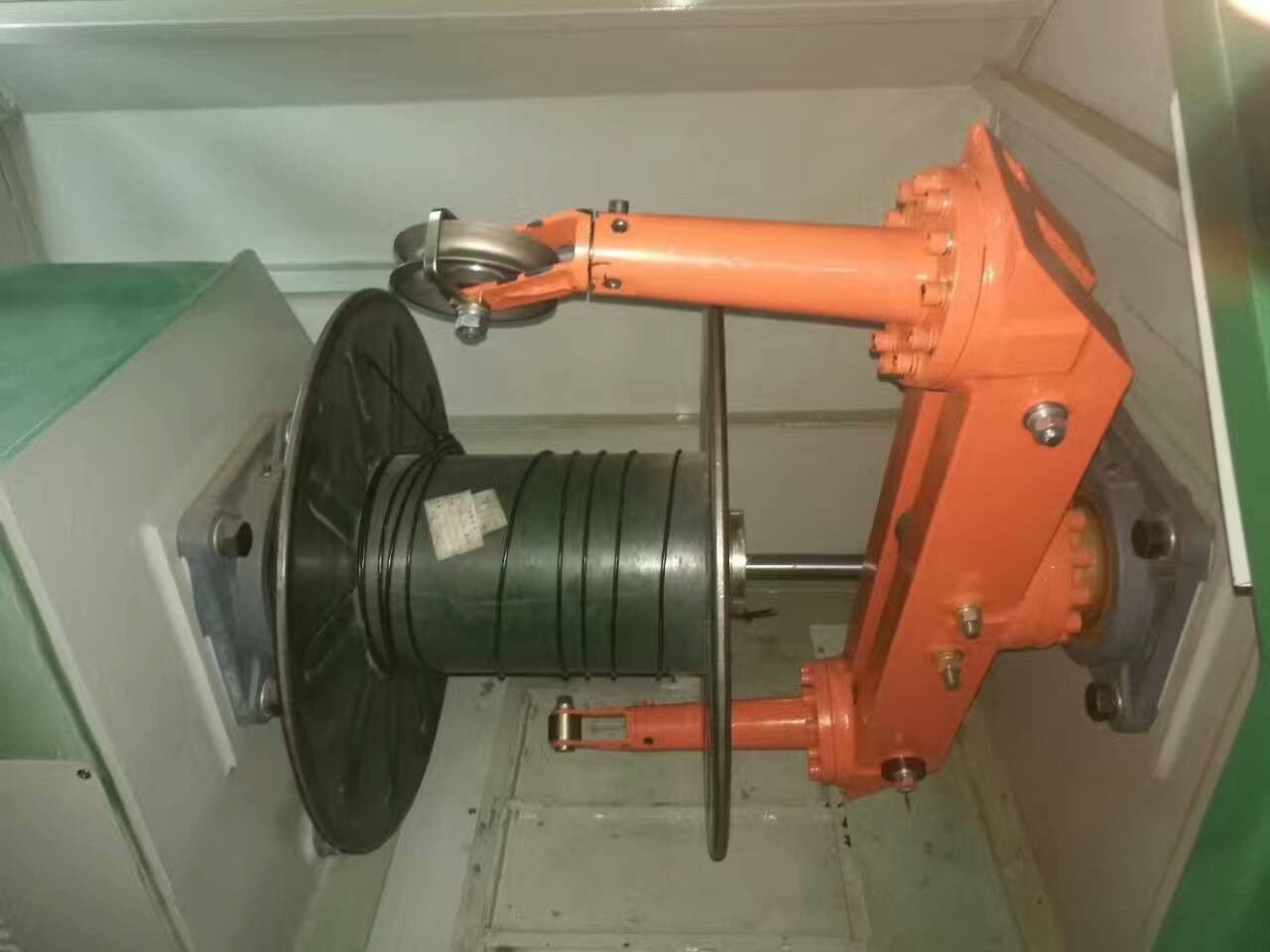

Cantilever type single cable stranding machine applied in the laying-up and stranding of power wire,telecommunications cable,control cable, CAT-5, CAT-6, CAT-7 date cable and other special core-wire,also can synchronously complete center wrapping or side wrapping.

PLC Control Single Twist Cable Machine

1.Application:
Cantilever type single cable stranding machine applied in the laying-up and stranding of power wire,telecommunications cable,control cable, CAT-5, CAT-6, CAT-7 date cable and other special core-wire,also can synchronously complete center wrapping or side wrapping.

2.Technical parameter:

cantilever type cable single stranding machine
technical parameters

machine typeGF-630GF-800GF-1000GF-1250
single wire diameterø0.6-3.0mmø0.6-4.0mmø1.0-5.0mmø3.0-10.0mm
max stranding wire diameterø15mmø20mmø25mmø30mm
stranding pitch10-180mm20-250mm30-350mm30-400mm
pay-off reel specificationø400-500mmø400-630mm
take-off reel specificationø630ø800ø1000ø1250
rotation speed1000rpm/min800rpm/min600rpm/min550rpm/min
shaft liftingelectric hydraulic lifting
take-up tensionpneumatic tension(adjustable)
stranding directionSZ left and right free option
traverse typetake-up by self-running of wire drum,reciprocal traverse
wrapping waycenter wind-wrapping or side straight-wrapping
