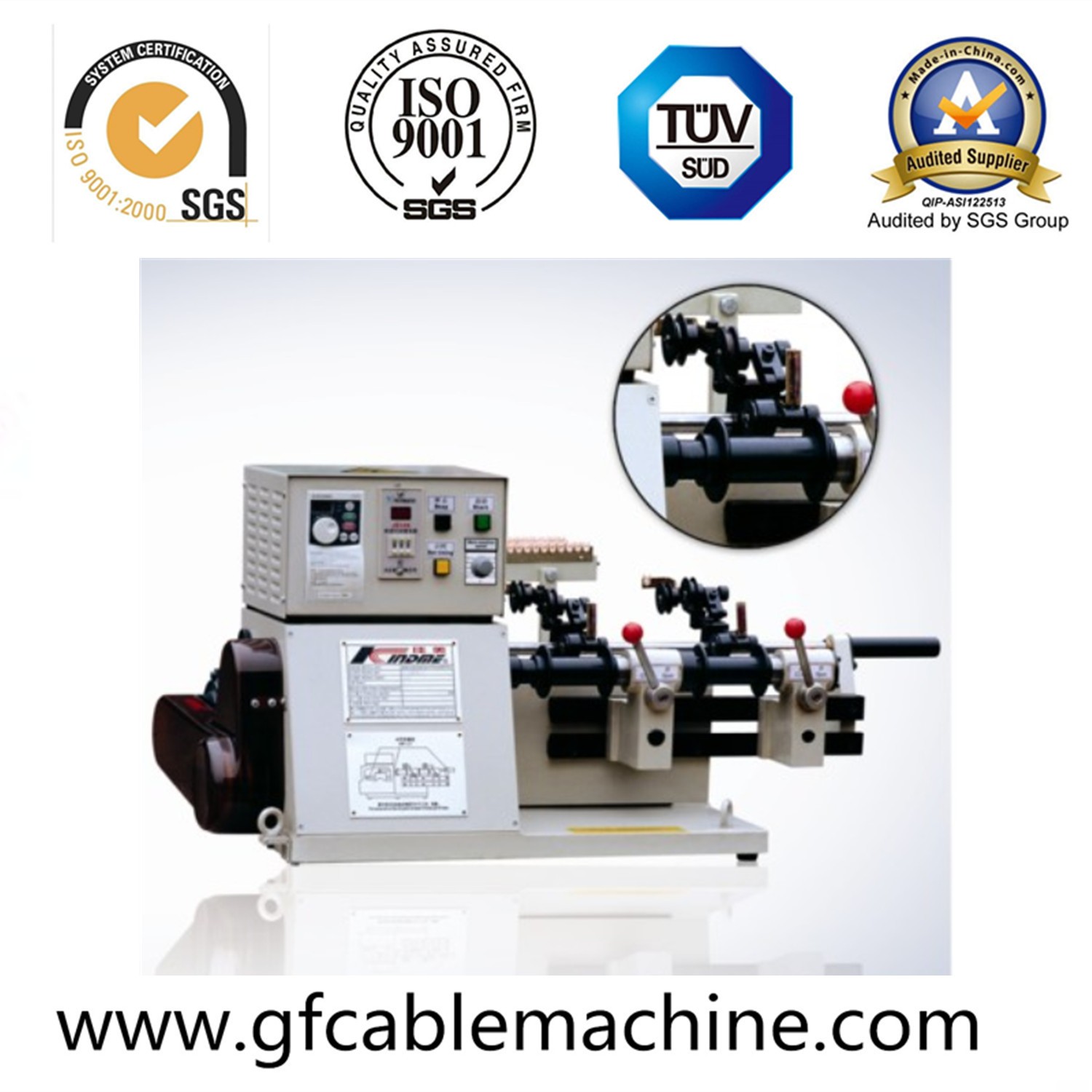

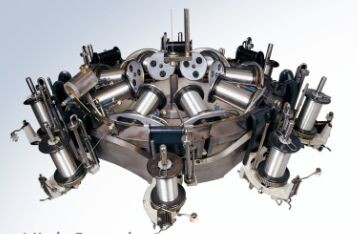

High Speed Copper Wire Braiding Machine

It is designed to apply metallic wire, textile and synthetic threads onto wire and cable. It is also suitable for manufacture of cords, ropes and hoses.
2.specification

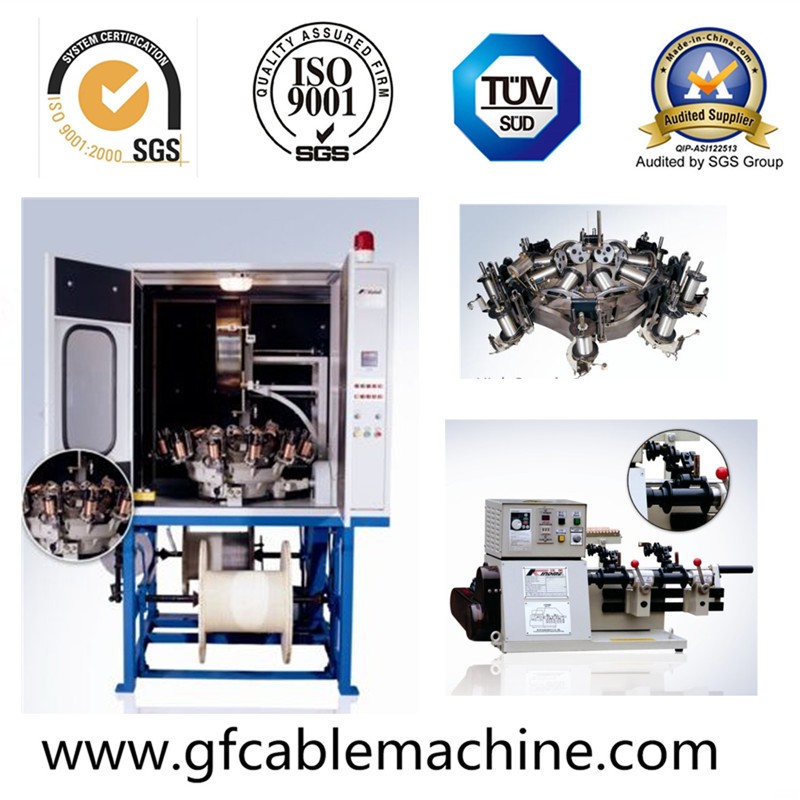

High Speed Copper Wire Braiding Machine

1.Copper Wire Braiding Machine Application:
It is designed to apply metallic wire, textile and synthetic threads onto wire and cable. It is also suitable for manufacture of cords, ropes and hoses.
2.specification

  type16 carrier high speed braider with cover24 carrier high speed braider with cover24 carrier horizontal type high speed braider36 carrier horizontal type high speed braider
Overall diameter of the wires to be braided  MaxΦ14mmΦ22mmΦ50mmΦ80mm
Number of strands per carrierΦ0.25mm(1-7)   Φ0.15mm(1-13)    Φ0.12mm(2-13)
Φ0.08mm(3-13)  Φ0.05mm(4-13)
Φ0.25mm(1-7)   Φ0.15mm(1-13)
Φ0.12mm(2-13)  Φ0.08mm(3-13)
 Φ0.30mm(1-12)  Φ0.25mm(2-12)
Φ0.15mm(3-12)   Φ0.12mm(4-12)
Φ0.35mm(1-7)   Φ0.30mm(1-12)  Φ0.25mm(2-12)
Φ0.15mm(4-12)   Φ0.12mm(6-12)
Rotation of the main machine Max180RPM (the general speed is 150 RPM)120RPM (the general speed is 100 RPM)85RPM  55RPM  (the general speed is 45 RPM)
Pitch regulationThe pitch may be regulated with steps by transposing dears between 5.35 and 63.5mm. The pitch may be regulated with steps by transposing dears between 11.6 and 104mm. 38mm-166mm  48-240mm The pitch may be regulated  steplessly 49mm-249mm  72-360mm The pitch may be regulated  steplessly
Motor for the main machine380V    1.1KW380V    2.2KW380V    5.5KW380V    7.5KW
Reel sizeΦ800mm*600mmΦ800mm*600mmΦ1600mm*1200mmΦ1600mm*1200mm
take-up and pay-off spindle holeΦ>38mm≤80mmΦ80mmΦ80mmΦ80mm
